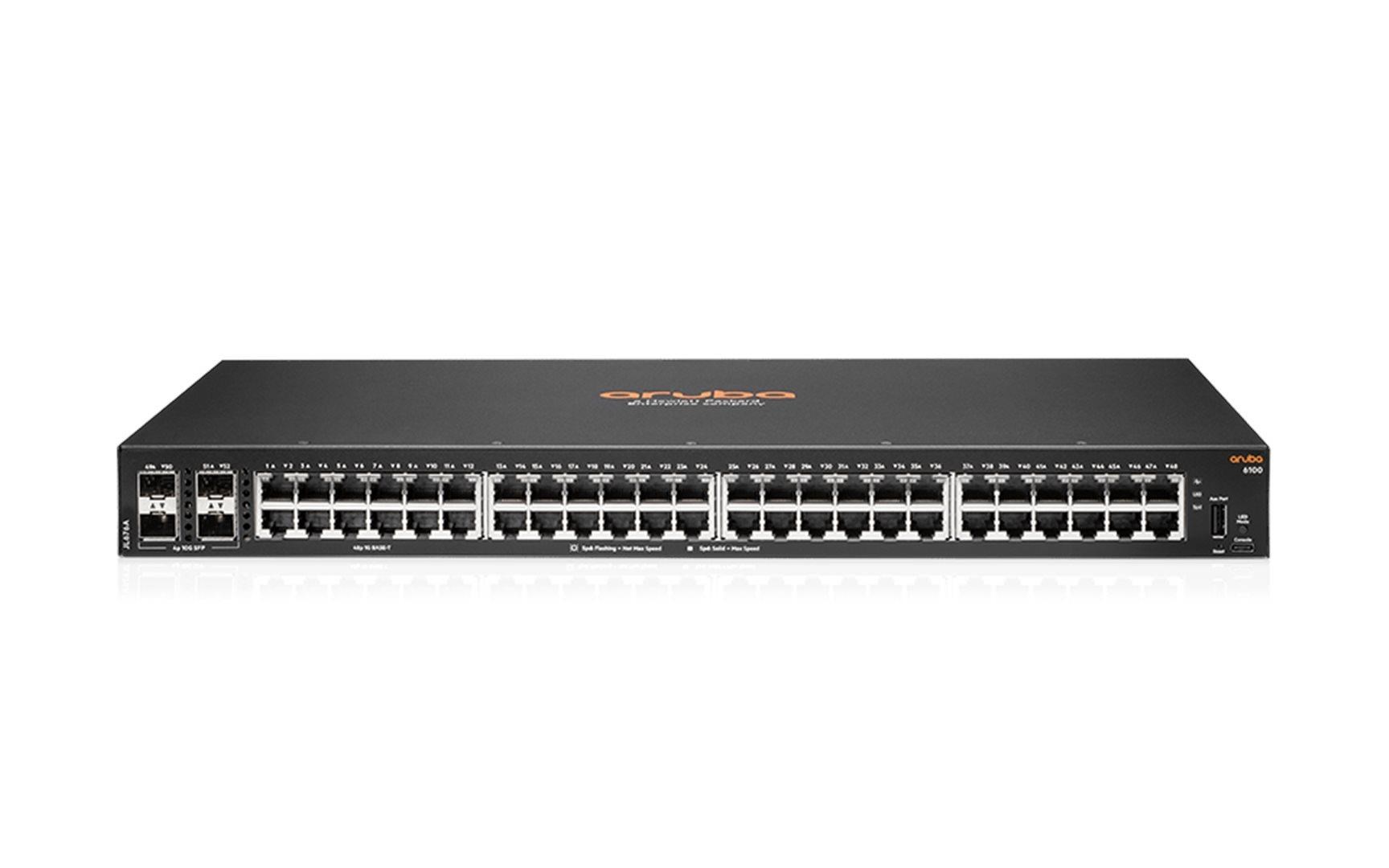

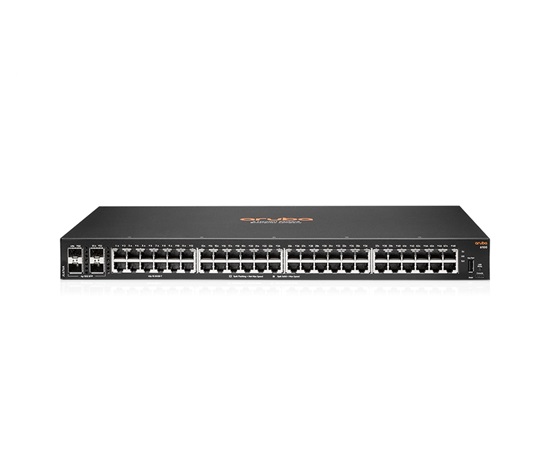

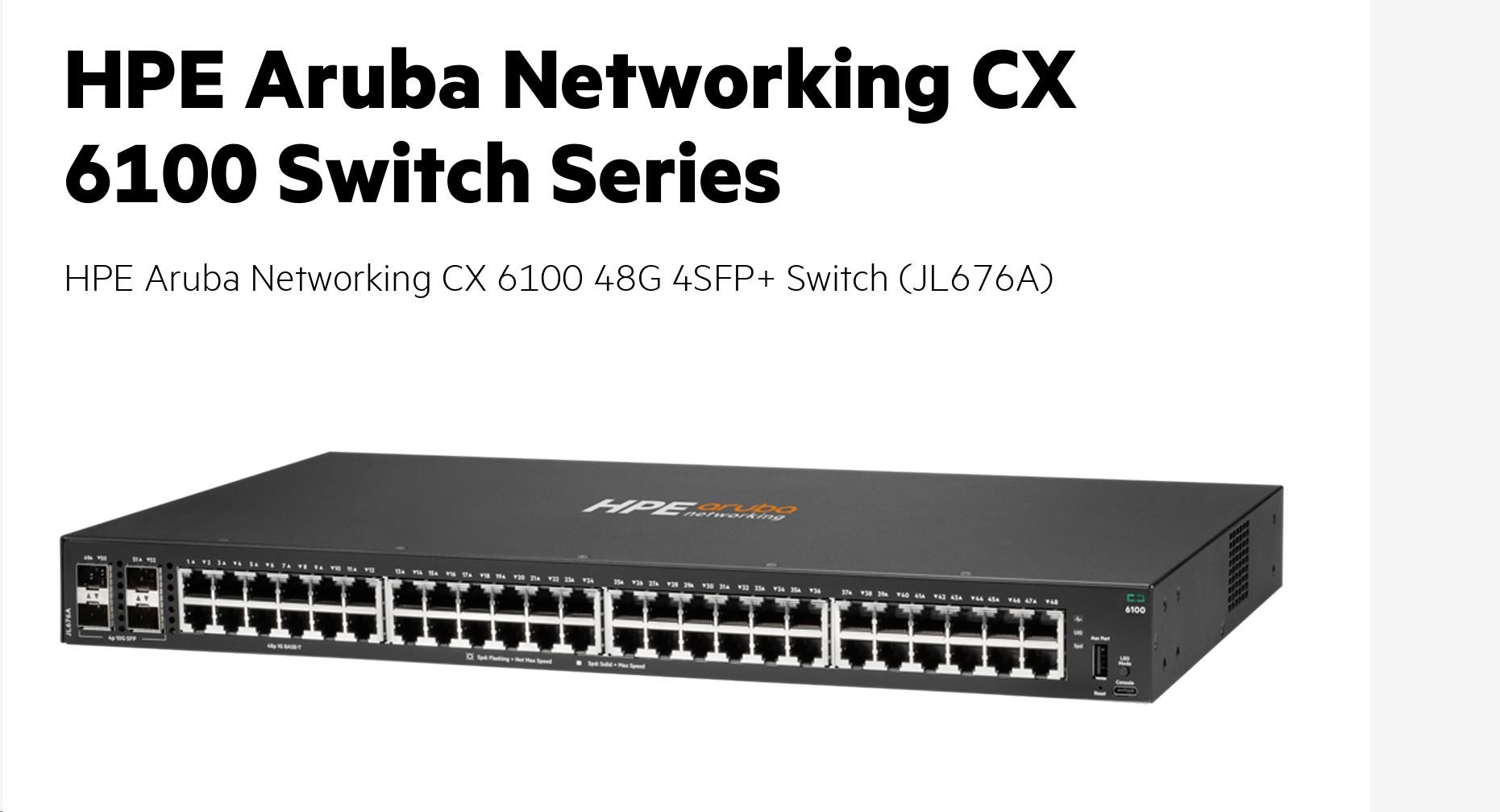

HPE Aruba Networking CX 6100 48G 4SFP+ Switch RENEW JL676AR#ABB

Twoja cena: produkt niedostępn

Kod:

3148024

P/N:

JL676AR#ABB

Gwarancja:

24 Dożyw.

Producent:

Hewlett Packard Enterprise

Przedstawiciel w UE:

EAN:

3148024

Szczegóły

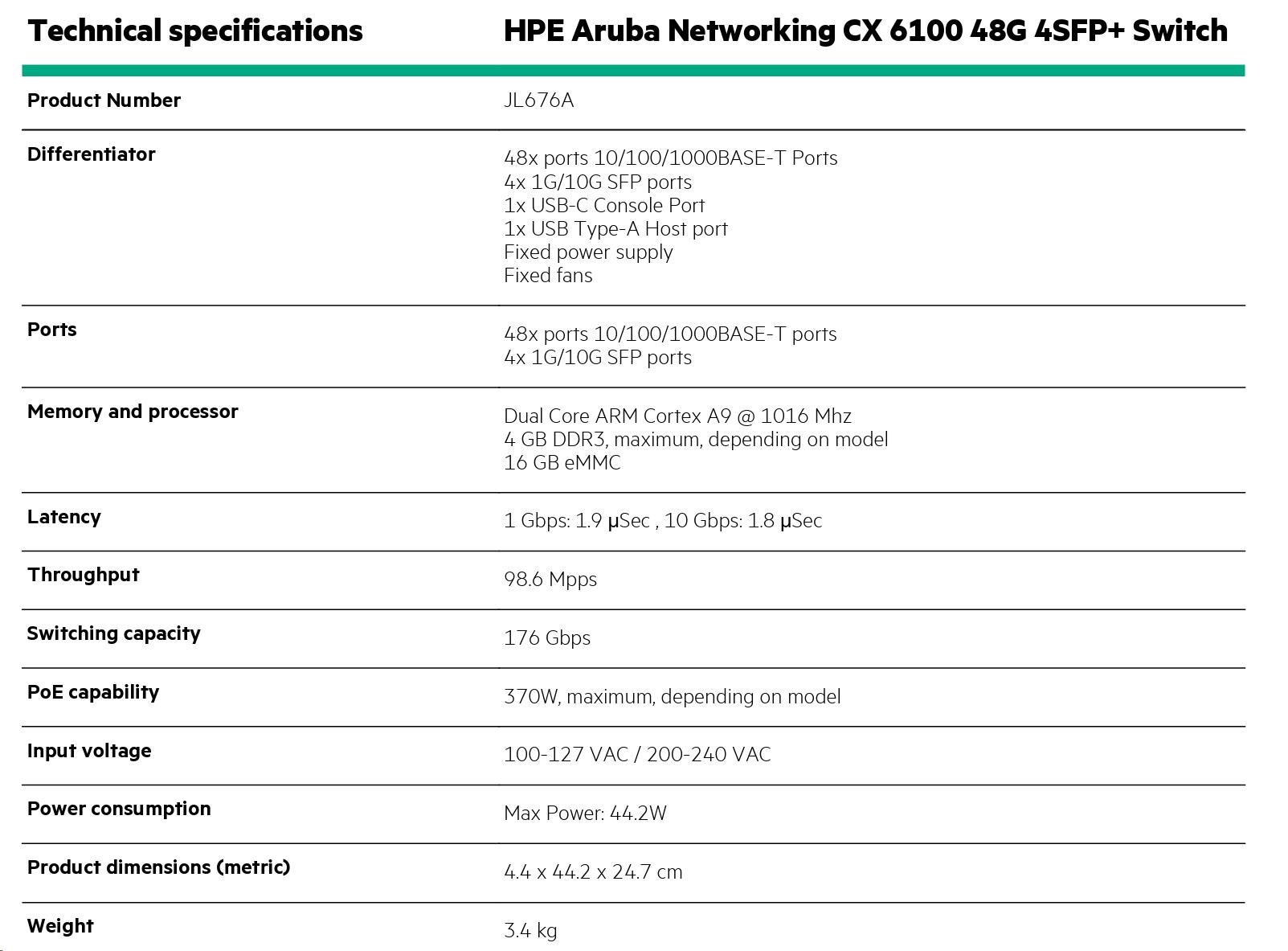

HPE Aruba Networking CX 6100 48G 4SFP+ Switch - Technical Specifications

Product Number	JL676A
Differentiator	48x ports 10/100/1000BASE-T Ports 4x 1G/10G SFP ports 1x USB-C Console Port 1x USB Type-A Host port Fixed power supply Fixed fans
Ports	48x ports 10/100/1000BASE-T ports 4x 1G/10G SFP ports
Memory and Processor	Dual Core ARM Cortex A9 @ 1016 MHz 4 GB DDR3 (maximum, depending on model) 16 GB eMMC
Latency	1 Gbps: 1.9 µSec 10 Gbps: 1.8 µSec
Throughput	98.6 Mpps
Switching Capacity	176 Gbps
PoE Capability	370W, maximum, depending on model
Input Voltage	100–127 VAC / 200–240 VAC
Power Consumption	Max Power: 44.2W
Product Dimensions (Metric)	4.4 x 44.2 x 24.7 cm
Weight	3.4 kg

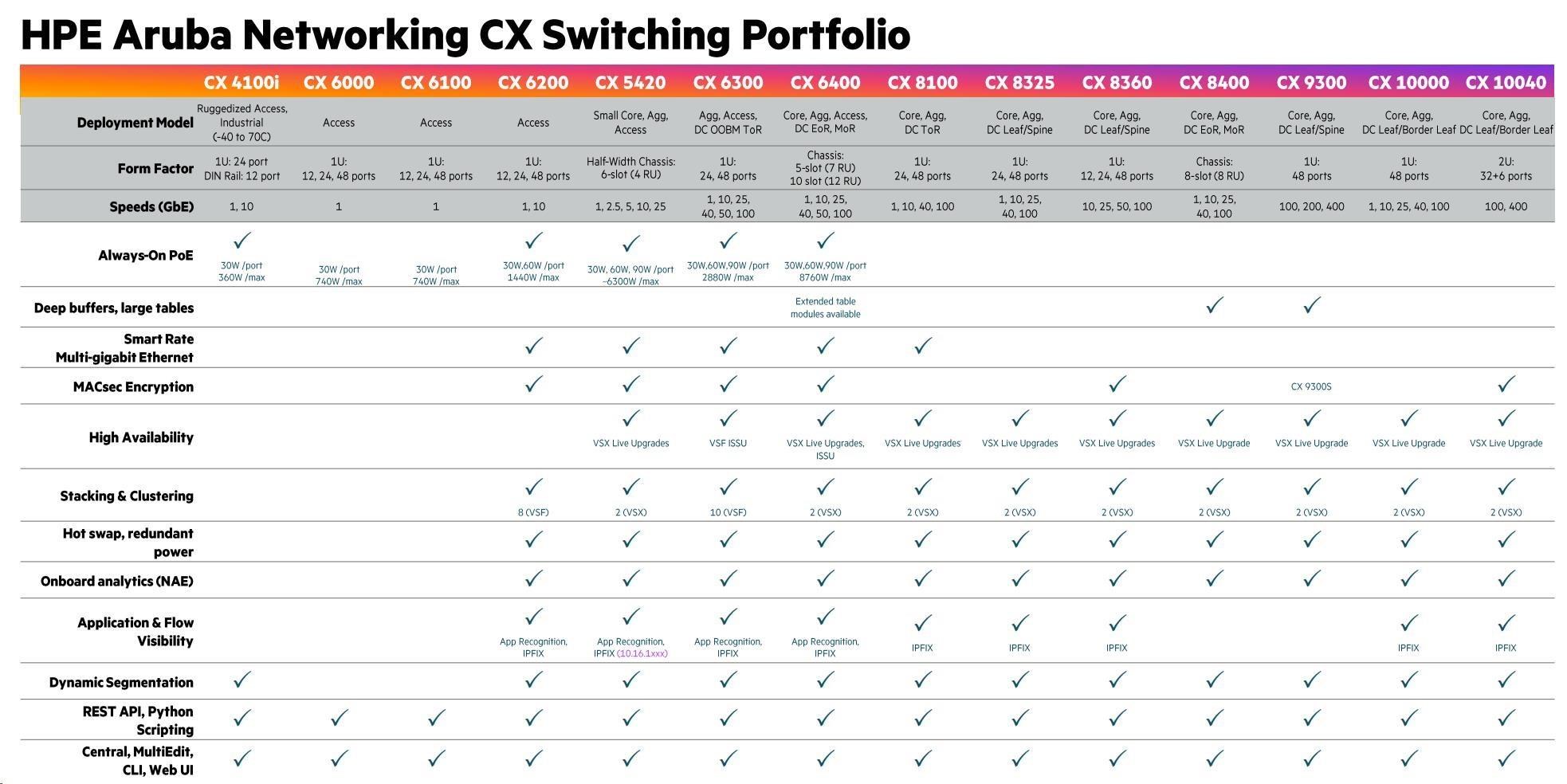

HPE Aruba Networking CX 6100 Switch Comparison

Feature	JL676A (48G Non-PoE)
Description	48x 1G Ports, 4x 1G/10G SFP+, USB-C Console, USB-A Host
PoE Power	Not Supported
Power Supply	Fixed 65W
Fans	Fixed
Dimensions (HxWxD)	4.39 x 44.2 x 24.74 cm
Weight	3.42 kg
CPU	Dual Core ARM Cortex A9 @ 1016 MHz
Memory / Flash	4 GB DDR3 / 16 GB eMMC
Packet Buffer	12.38 MB (4.5MB Ingress / 7.875MB Egress)
Switching Capacity	176 Gbps
Throughput	98.6 Mpps
Latency (64-byte)	1G: 1.9 µs, 10G: 1.8 µs
IPv4/IPv6 Hosts	IPv4: 1024, IPv6: 512
Unicast Routes (IPv4 / IPv6)	512 / 512
MAC Table	8,192 Entries
ACL Entries (IPv4 / IPv6 / MAC)	256 / 128 / 256
Operating Temp	0°C to 45°C (Derated above 1.5 km)
Power Consumption (230V)	Idle: 20.6W Max: 44.2W
Acoustic	3.6 Bel / 24.6 dB
Mounting	Rack, Wall, or Flat Surface Mount (kit included)
Certifications & Compliance	IEC/EN/UL/CSA 62368-1, FCC, VCCI, CISPR, EN 55032, etc.
