HPE Aruba Networking CX 6000 24G Class4 PoE 4SFP 370W Switch RENEW R8N87A
HPE Aruba Networking CX 6000 24G Class4 PoE 4SFP 370W Switch RENEW R8N87A
Szczegóły

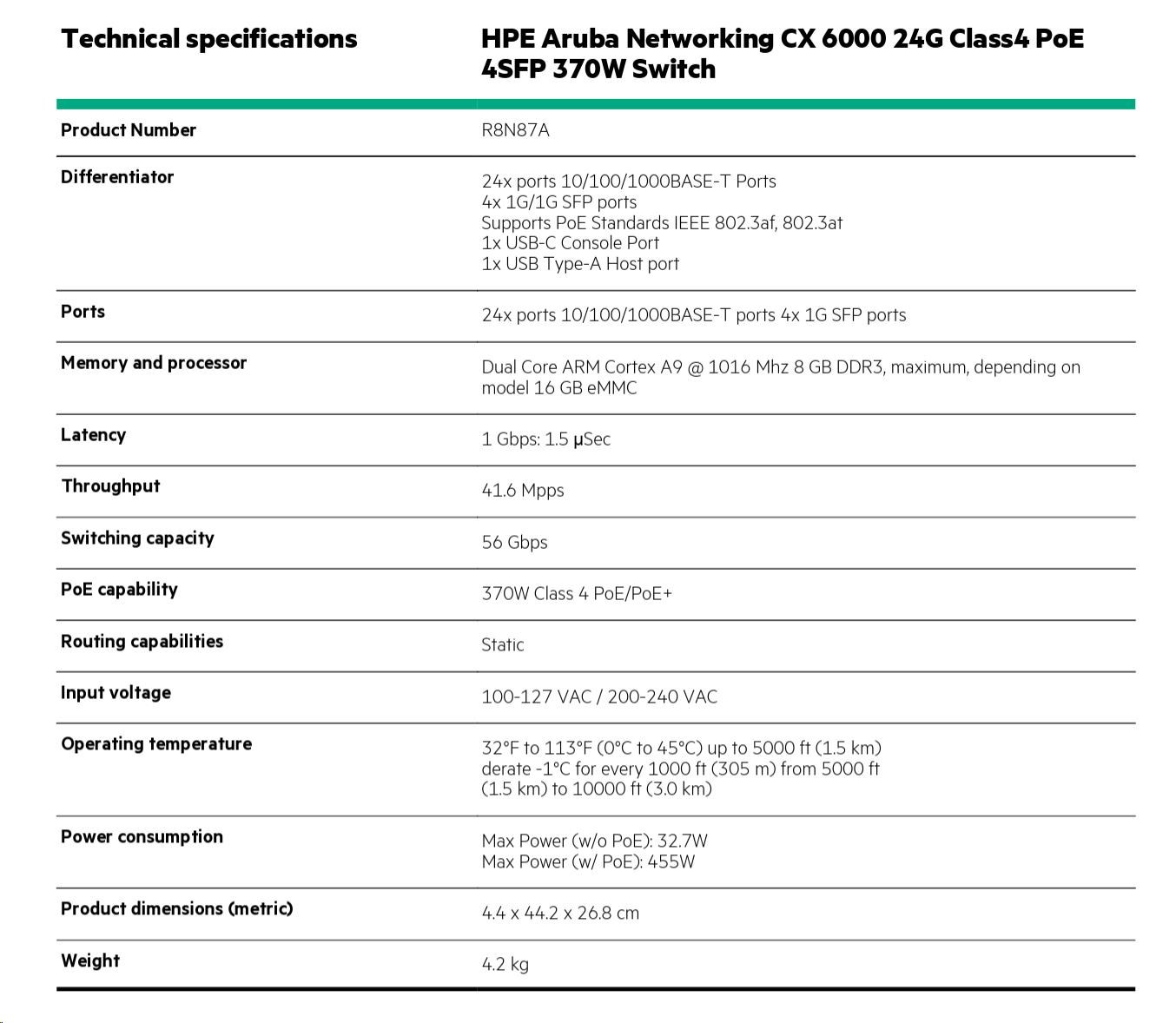

HPE Aruba Networking CX 6000 24G Class4 PoE 4SFP 370W Switch
|
Specifications |
|||
|
Aruba 6000 48G Class4 PoE 4SFP 370W Switch (R8N85A) |
Aruba 6000 48G 4SFP Switch (R8N86A) |
Aruba 6000 24G Class4 PoE 4SFP 370W Switch (R8N87A) |
|
|
Description |
48x ports 10/100/1000BASE-T Ports
4x 1G/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x USB Type-A Host port |
48x ports 10/100/1000BASE-T Ports
4x 1G/10G SFP ports 1x USB-C Console Port 1x USB Type-A Host port |
24x ports 10/100/1000BASE-T Ports
4x 1G/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x USB Type-A Host port |
|
Power supplies |
Fixed power supply Up to 370W of Class 4 PoE Power |
Fixed power supply |
Fixed power supply Up to 370W of Class 4 PoE Power |
|
Fans |
Fixed fans |
Fixed fans |
Fixed fans |
|
Physical characteristics |
|||
|
Dimensions |
(H) 4.39 cm (W) 44.2 cm (D) 30.48 cm (1.73" x 17.4" x 12.0") |
(H) 4.39 cm (W) 44.2 cm (D) 24.74 cm (1.73" x 17.4" x 9.74") |
(H) 4.39 cm (W) 44.2 cm (D) 26.82 cm (1.73" x 17.4" x 10.56") |
|
Configuration Weight |
5.02 kg (11.07 lbs) |
3.42 kg (7.54 lbs) |
4.19kg (9.24 lbs) |
|
Additional Specifications |
|||
|
CPU |
Dual Core ARM Cortex A9 @ 1016 Mhz |
Dual Core ARM Cortex A9 @ 1016 Mhz |
Dual Core ARM Cortex A9 @ 1016 Mhz |
|
Memory and Flash |
4 GB DDR3 16 GB eMMC |
4 GB DDR3 16 GB eMMC |
4 GB DDR3 16 GB eMMC |
|
Packet Buffer |
12.38MB (4.5MB Ingress/7.875MB Egress) |
12.38MB (4.5MB Ingress/7.875MB Egress) |
12.38MB (4.5MB Ingress/7.875MB Egress) |
|
Performance |
|||
|
Model Switching Capacity |
104 Gbps |
104 Gbps |
56 Gbps |
|
Model Throughput Capacity |
77.3 Mpps |
77.3 Mpps |
41.6 Mpps |
|
Average Latency (LIFO-64- bytes packets) |
1 Gbps: 1.9 µSec |
1 Gbps: 1.9 µSec |
1 Gbps: 1.5 µSec |
|
Switched Virtual Interfaces (dual stack) |
16 |
16 |
16 |
|
IPv4 Host Table (ARP) |
1,024 |
1,024 |
1,024 |
|
IPv6 Host Table (ND) |
512 |
512 |
512 |
|
IPv4 Unicast Routes |
512 |
512 |
512 |
|
IPv6 Unicast Routes |
512 |
512 |
512 |
|
MAC Table Capacity |
8,192 |
8,192 |
8,192 |
|
IGMP Groups |
512 |
512 |
512 |
|
MLD Groups |
512 |
512 |
512 |
|
IPv4/IPv6/MAC ACL Entries (ingress) |
256 / 128 / 256 |
256 / 128 / 256 |
256 / 128 / 256 |
|
|
Aruba 6000 48G Class4 PoE 4SFP 370W Switch (R8N85A) |
Aruba 6000 48G 4SFP Switch (R8N86A) |
Aruba 6000 24G Class4 PoE 4SFP 370W Switch (R8N87A) |
|
Environment |
|||
|
Operating Temperature |
32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km) |
32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km) |
32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km) |
|
Operating Relative Humidity |
15% to 95% at 104°F (40°C) non-condensing |
15% to 95% at 104°F (40°C) non-condensing |
15% to 95% at 104°F (40°C) non-condensing |
|
Non-Operating |
-40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km) |
-40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km) |
-40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km) |
|
Non-Operating Storage Relative Humidity |
15% to 90% @ 149°F (65°C) non-condensing |
15% to 90% @ 149°F (65°C) non-condensing |
15% to 90% @ 149°F (65°C) non-condensing |
|
Max Operating Altitude |
10000 feet (3 km) Max |
10000 feet (3 km) Max |
10000 feet (3 km) Max |
|
Max Non-Operating Altitude |
15000 feet (4.6 km) Max |
15000 feet (4.6 km) Max |
15000 feet (4.6 km) Max |
|
Acoustic |
Sound Power, LWAd = 4.3 Bel Sound Pressure, LpAm (Bystander) = 29.8 dB |
Sound Power, LWAd = 3.6 Bel Sound Pressure, LpAm (Bystander)= 24.6 dB |
Sound Power, LWAd = 3.9 Bel Sound Pressure, LpAm (Bystander)= 24.3 dB |
|
Primary Airflow |
Side-to-side |
Side-to-side |
Side-to-side |
|
Electrical Characteristics |
|||
|
Frequency |
50 / 60 Hz |
50 / 60 Hz |
50 / 60 Hz |
|
AC Voltage |
100-127 VAC / 200-240 VAC |
100-127 VAC / 200-240 VAC |
100-127 VAC / 200-240 VAC |
|
Current |
4.9 A / 2.4 A |
0.8 A / 0.5 A |
4.6 A / 2.3 A |
|
Power Consumption (230 VAC) |
Idle: 30.6W Max Power (w/o PoE): 45W Max Power (w/ PoE): 480W |
Idle: 20.6W Max Power (w/o PoE): 44.2W |
Idle: 22.9W Max Power (w/o PoE): 32.7W Max Power (w/ PoE): 455W |
|
Safety |
UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014 |
UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014 |
UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014 |
|
Emissions |
VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A |
VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A |
VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A |
|
|
Aruba 6000 48G Class4 PoE 4SFP 370W Switch (R8N85A) |
Aruba 6000 48G 4SFP Switch (R8N86A) |
Aruba 6000 24G Class4 PoE 4SFP 370W Switch (R8N87A) |
|
Lasers |
EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only) |
EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only) |
EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only) |
|
Immunity |
|||
|
Generic |
CISPR 24 / CISPR 35 |
CISPR 24 / CISPR 35 |
CISPR 24 / CISPR 35 |
|
EN |
EN 55024:2010 / EN 55035:2017 |
EN 55024:2010 / EN 55035:2017 |
EN 55024:2010 / EN 55035:2017 |
|
ESD |
IEC 61000-4-2 |
IEC 61000-4-2 |
IEC 61000-4-2 |
|
Radiated |
IEC 61000-4-3 |
IEC 61000-4-3 |
IEC 61000-4-3 |
|
EFT/Burst |
IEC 61000-4-4 |
IEC 61000-4-4 |
IEC 61000-4-4 |
|
Surge |
IEC 61000-4-5 |
IEC 61000-4-5 |
IEC 61000-4-5 |
|
Conducted |
IEC 61000-4-6 |
IEC 61000-4-6 |
IEC 61000-4-6 |
|
Power frequency magnetic field |
IEC 61000-4-8 |
IEC 61000-4-8 |
IEC 61000-4-8 |
|
Voltage dips and interruptions |
IEC 61000-4-11 |
IEC 61000-4-11 |
IEC 61000-4-11 |
|
Harmonics |
EN 61000-3-2, IEC 61000-3-2 |
EN 61000-3-2, IEC 61000-3-2 |
EN 61000-3-2, IEC 61000-3-2 |
|
Flicker |
EN 61000-3-3, IEC 61000-3-3 |
EN 61000-3-3, IEC 61000-3-3 |
EN 61000-3-3, IEC 61000-3-3 |
|
Mounting and Enclosure |
Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting |
Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting |
Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting |
Specyfikacje techniczne
- Funkce: L3
- Funkce: QoS (Quality of service)
- Přenosová rychlost LAN (Mb/s): 570
- Funkce: VLAN (virtual local area network)
- Počet SFP portů: 4
- Funkce: PoE (Power over ethernet)
- PoE budget (W): 370
- Wygląd: Rack mounted 19"
- Technologia: Gigabit Ethernet 1000Mbps
- Zarządzanie: SNMP/RMON
- Maksymalna ilość podłączeń (portów): 24
- Właściwości przełączniki: Technologia POE
- PoE budget (W): 370
- Počet SFP portů: 4
- Maximální počet portů: 24
