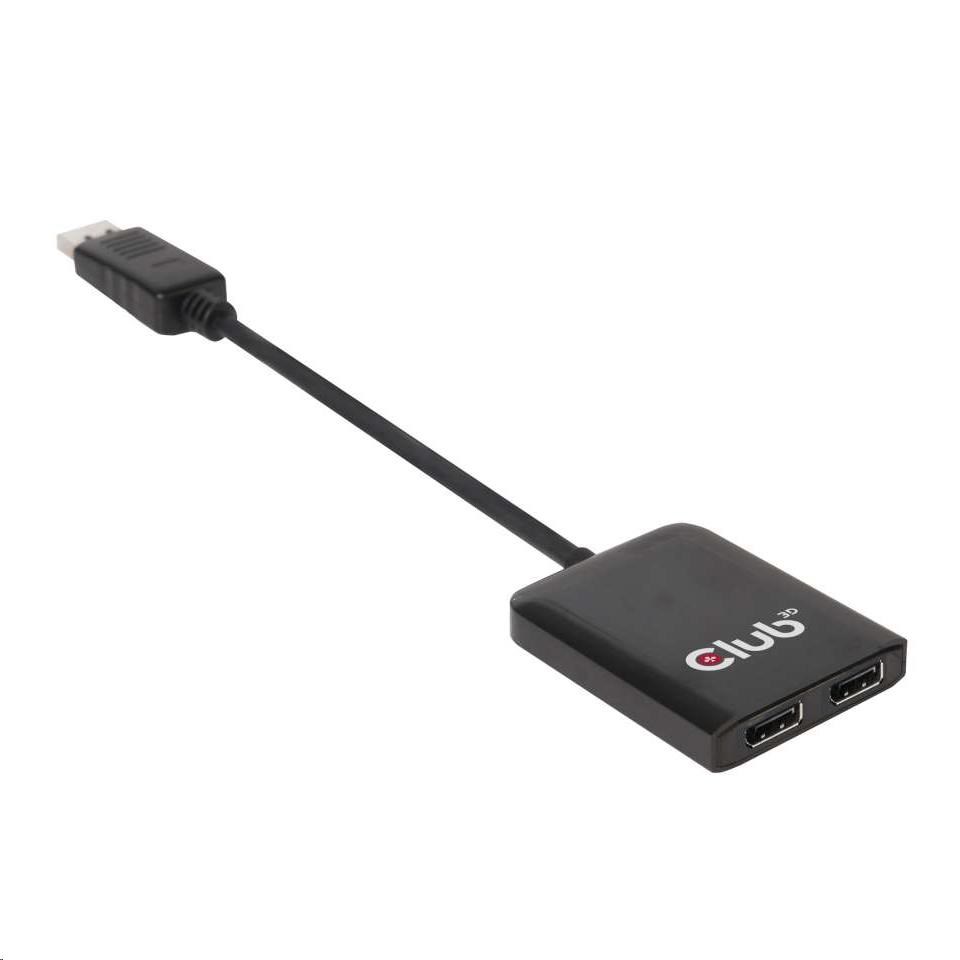

Club3D MST HUB 1X DP TO 2X DP
Specyfikacja kabla / przejsciówki:Adapter
Twoja cena:
Pokaż cenę
Dostępność:
1 szt w drodze (05.04.2024)
-
Kod:
795057
-
P/N:
CSV-6200
-
Gwarancja:
24 Mies.
-
Producent:
Club 3D
-
EAN:
8719214470906
Szczegóły
Model |

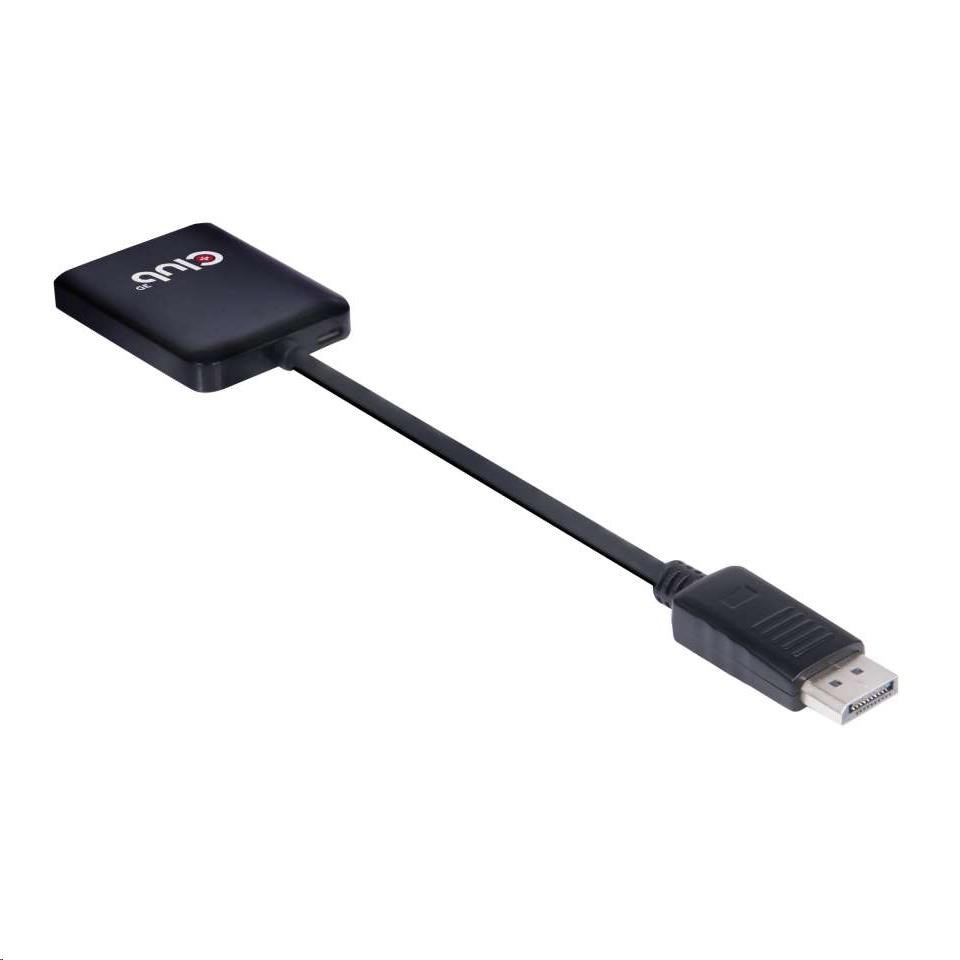

Product Name: Multi Stream Transport (MST) Hub DisplayPort™ 1.2 Dual Monitor USB Powered |
Product Series: Video Splitters |
Item Code: CSV-6200 |
EAN Code: 8719214470906 |
UPC Code: 841615101092 |

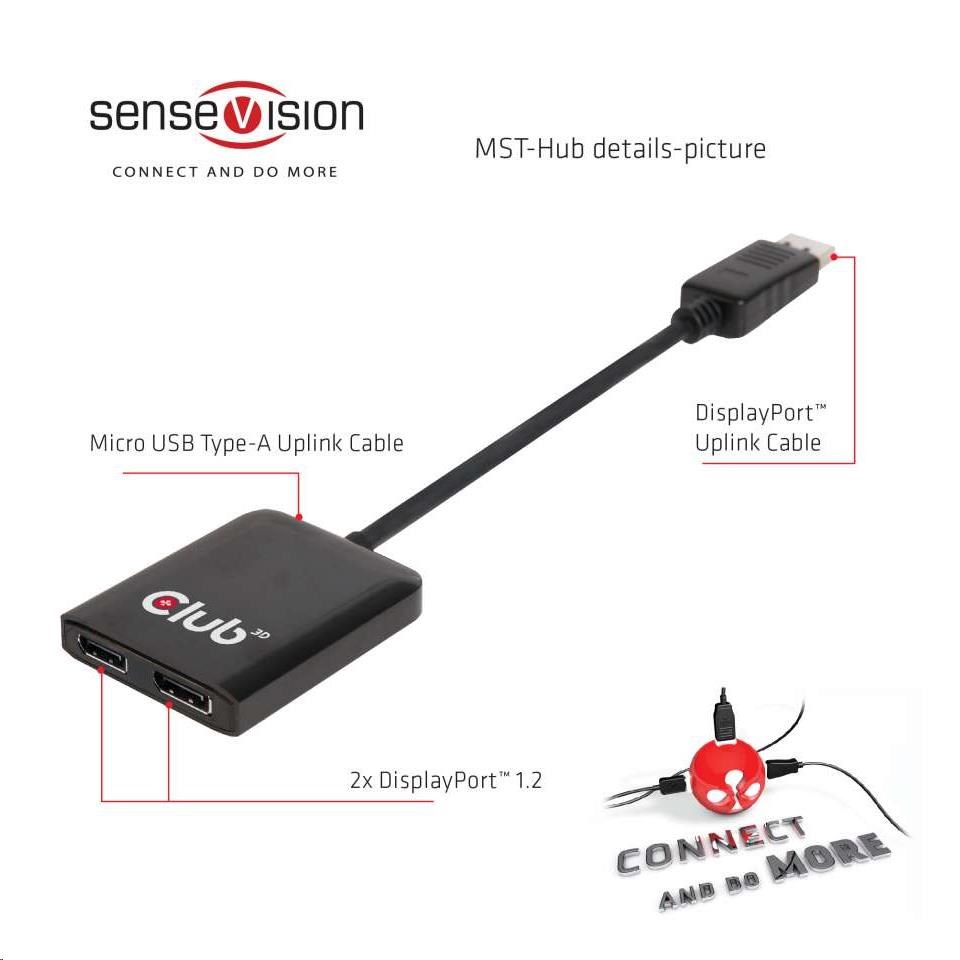

Input: |
DisplayPort™ 1.2 Male, Micro USB Female for Power |
Output: |
2x DisplayPort™ Female |
Features |
• Compliant with: DisplayPort™ v1.2a, DisplayPort™ v1.1a, VESA DDM Standard, HDCP V2.0, Display Id,and EDID V1.4 |
• Supports main link rates of 5.4 Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR) from source |
• Input pixel dat a depth 6/8/10/12 bits and supports output pixel format RGB444 |
• Supports Advanced Wide Eye™ SerDes technology enables high Jitter performance |

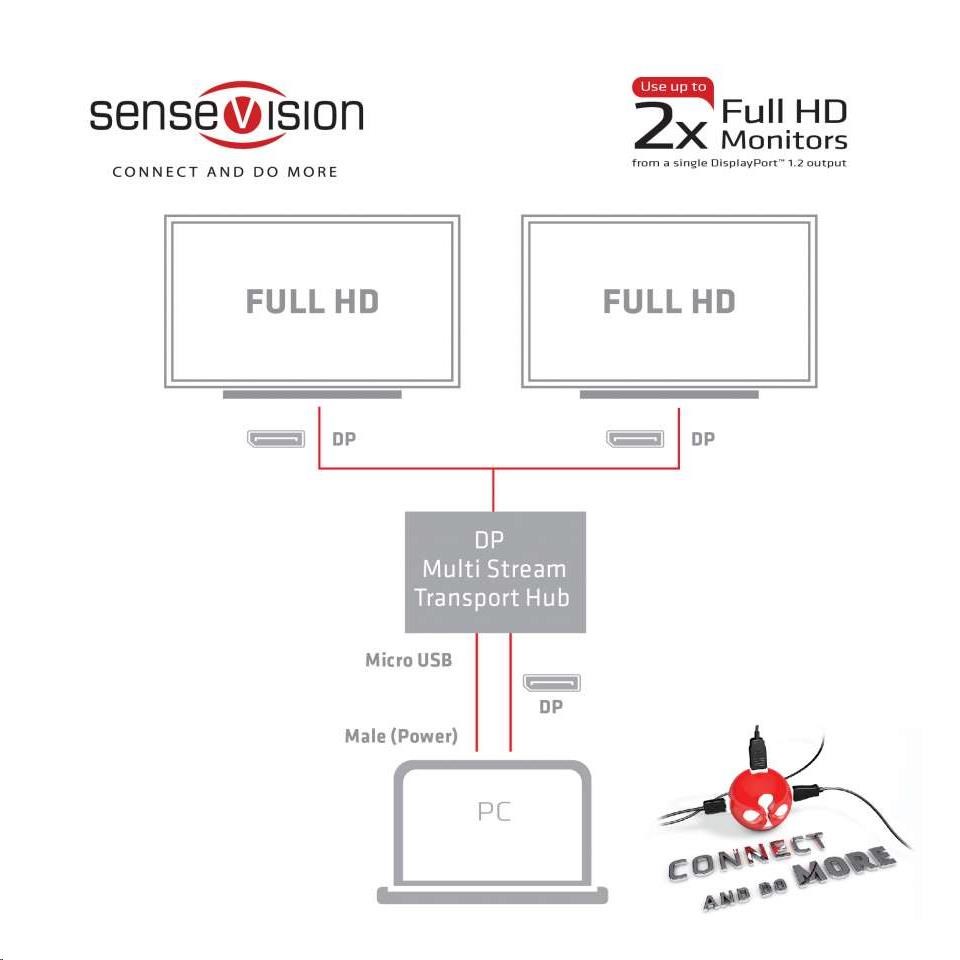

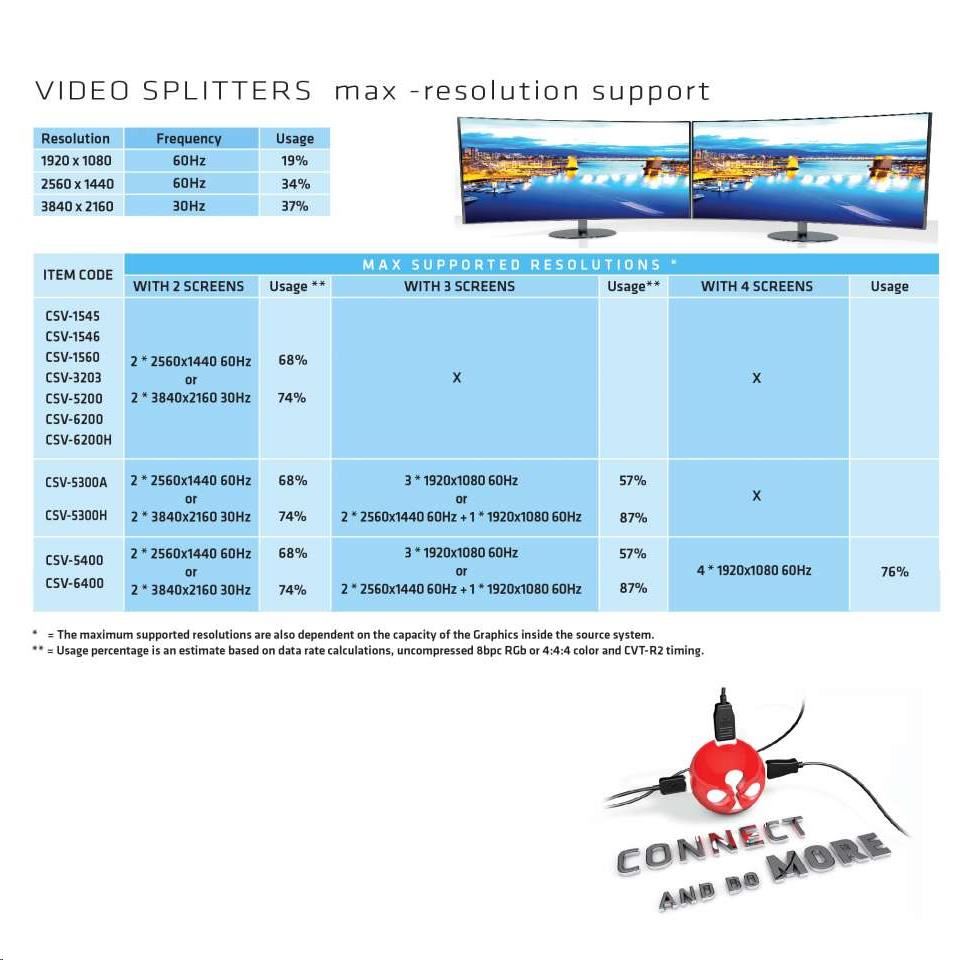

• Dual Monitor setup resolution up to 2x 2560X1600p @ 60Hz |
• Supports AMD Eyefinity™ |
• Compatible with Microsoft Surface Pro and Intel NUC platforms |
• Works with AMD, Nvidia and Intel Graphics solutions |
Note: Some Notebooks/Tablets/MiniPC's have Integrated Graphics Chips which do not support more than 3 screens in total. Please consult with your device specifications for further information. |
Operating System Support: |
Microsoft Windows 10/ 8.1 |
Other info: |
• Hub size LxWxD: 61 x 49 x 12 mm |
• Hub Weight: 54 gr. |
• Cable Length USB: 1000 mm |
• Cable Weight USB: 22 gr. |
• Cable Length DP: 180 mm |

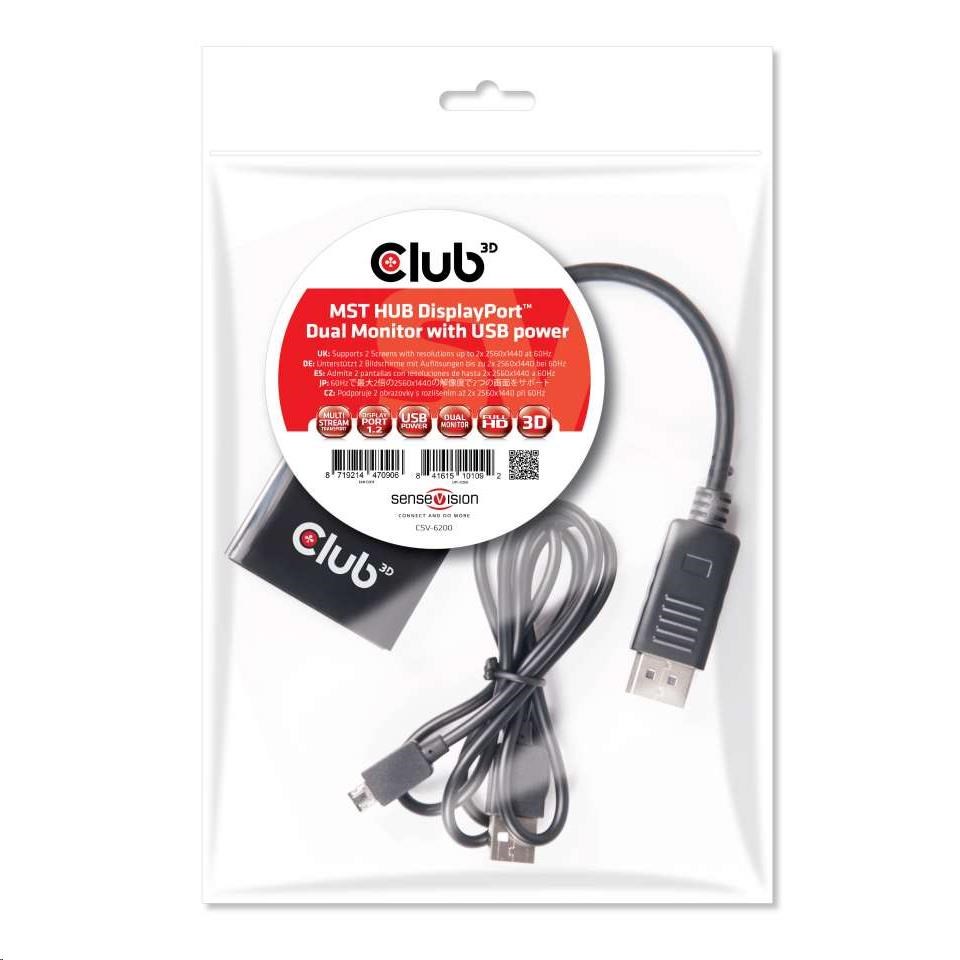

• Poly Bag: 160x 240 mm. |
• Poly Bag Weight: 9 gr. |
In the box: |
• Multi Stream Transport (MST) Hub DisplayPort™ 1.2 Dual Monitor USB Powered |

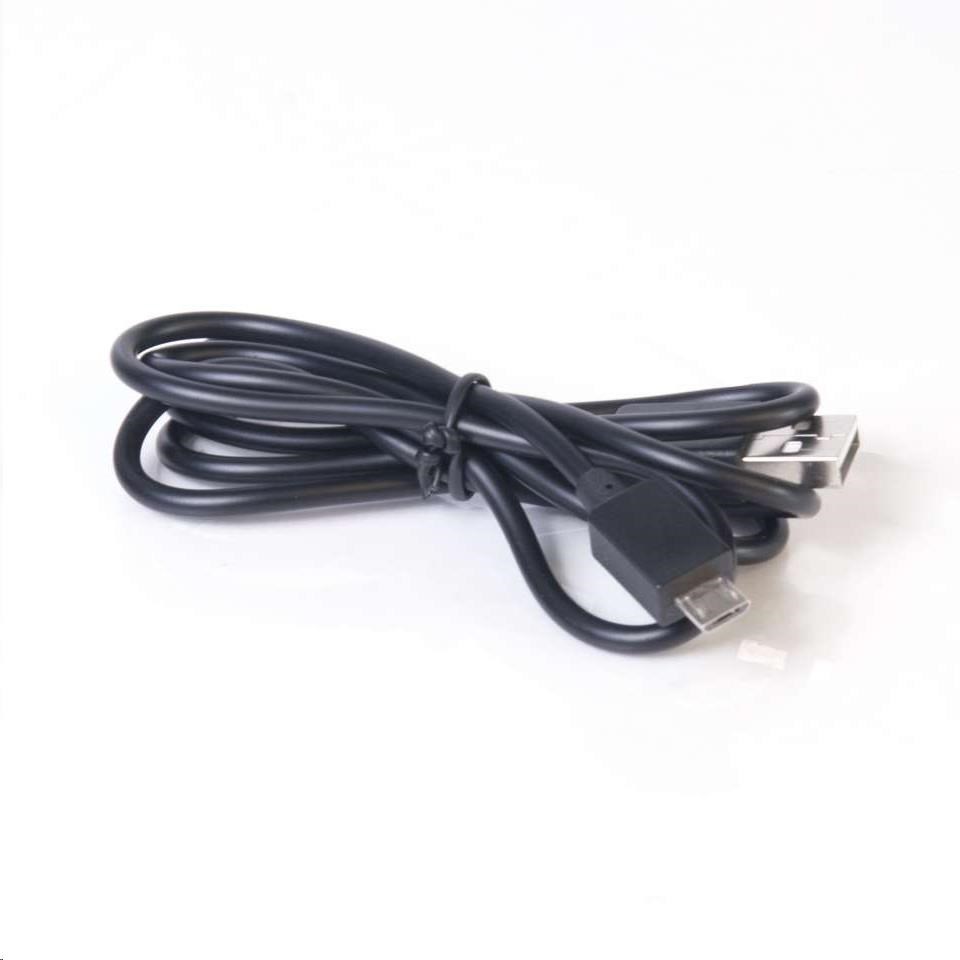

• USB to Micro USB Cable for power |
• Quick install guide |
In case of technical questions, you can contact the official support of the Club 3D manufacturer by email: support@club-3d.com. Support works mainly in English, but you can also write a question in Czech and the manufacturer will handle it. The manufacturer will respond within 24 hours. It is also possible to visit the discussion at the link: https://insights.club-3d.com/. Where you can also find useful information on using Club 3D products.
Specyfikacje techniczne
- Specyfikacja kabla / przejsciówki: Adapter
