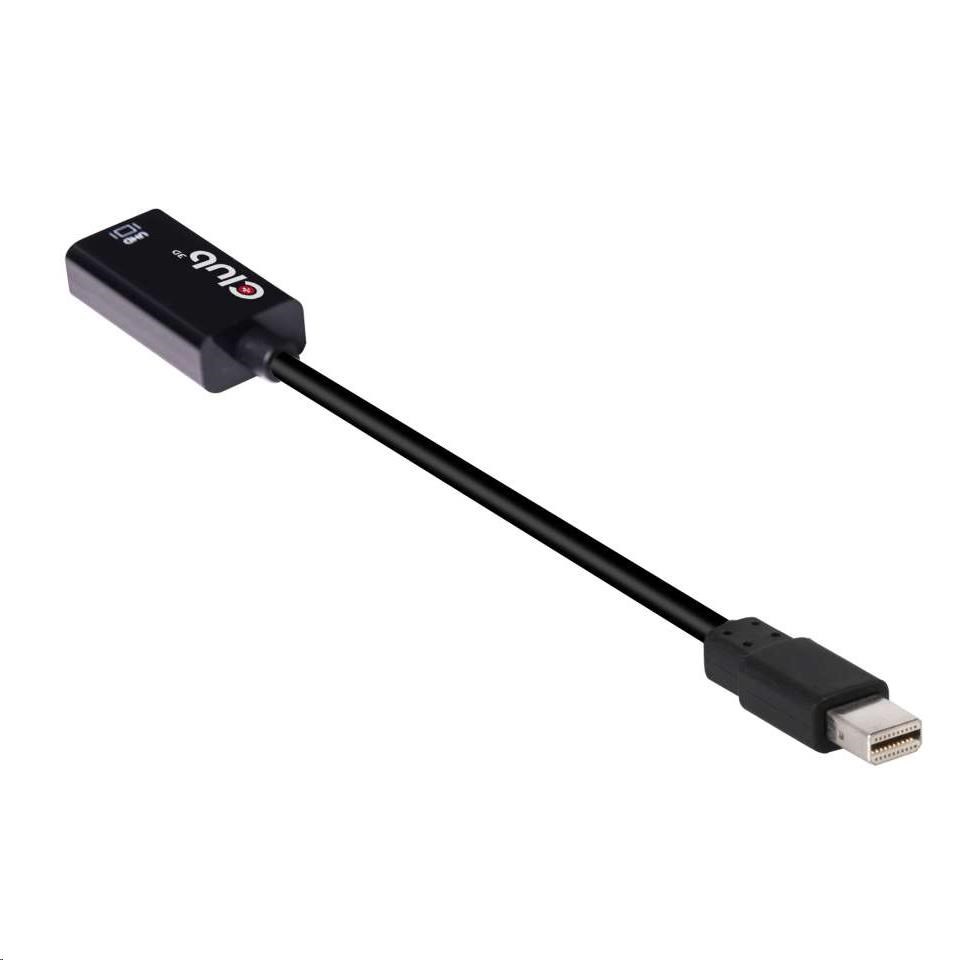

Club3D MINI DISPLAY PORT 1.4 MALE TO HDMI 2.0a FEMALE 4K 60HZ UHD/ 3D ACTIVE ADAPTER - HDR SUPPORT
Specyfikacja kabla / przejsciówki:Adapter
Twoja cena:
Pokaż cenę
Dostępność:
W magazynie 3 szt
-
Kod:
795053
-
P/N:
CAC-1180
-
Gwarancja:
24 Mies.
-
Producent:
Club 3D
-
EAN:
8719214470869
Szczegóły
Model |
Product Name: Mini DisplayPort™ 1.4 to HDMI™ 2.0b HDR Active Adapter |
Product Series: Adapters |
Item Code: CAC-1180 |
EAN Code: 8719214470869 |
UPC Code: 841615101054 |
Features |
• DisplayPort™ 1.4 Receiver, up to 5.4Gbps link Rate, HBR2/HBR/RBR |
• Video Stream Handling: |
- Up to 600Mhz dual pixel path and 16bpc |
- RGB/YCbCr 4:4:4/4:2:2/4:2:0 pixel format |
- Horizontal expansion of Vesa CVT to CEA Timings (as per DP™ 1.4 spec) |
• DisplayPort™ to HDMI™ Stereoscopic 3D Transport |
- Frame Sequential to Stacked Top-Bottom Conversion |
- Pass-trough of ther 3D Formats |
- LPCM and compressed Audio encoding formats |
- Max audio sample rate of 192 Khz x 8 Channel or 768 KHz x 2 Channel |
• HDCP Support |
- HDCP 1.3 to HDCP 1.4 repeater function |
- HDCP 2.2 to HDCP 1.4 and 2.2 repeater Function |
• HDMI™ transmitter |
- Compliant to HDMI™ specifications version 2.0b |
- 600MHz max TMDS character clock |
- High Daynamic Range (HDR) support both Static- and Dynamic HDR. |
- CEC Support - snooping, tunneling |
• Max Video resolution and color depth on HDMI™ output |
- 4K 60Hz RGB/YCbCr 4:4:4, 8bpc |
- 4K 60Hz YCbCr 4:2:2, up to 12bpc |
- 4K 60Hz YCbCr 4:2:0, up to 16bpc |
- 4K 30Hz RGB/YCbCr 4:4:4, up to 16bpc |
Note: For HDR to function, the source system needs to support DisplayPort™ 1.4 and the screen needs to have support for HDR and / or HDMI™ 2.0 a or b. |
Input: |
Mini DisplayPort™ 1.4 male |
Output: |
HDMI™ 2.0b female |
Operating Systems |
Windows 10, Apple OS X |
Other info |
• Boxsize: 182 x 60 x 35mm. |

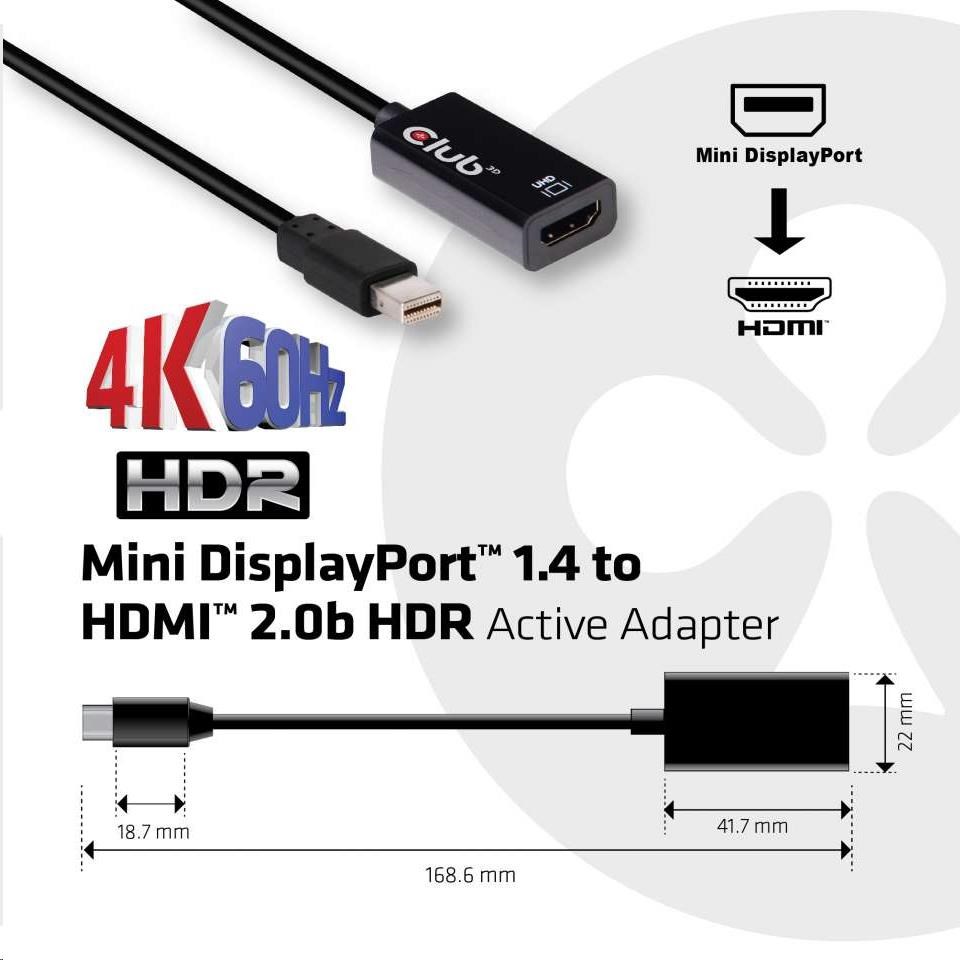

• Cable: 184 x 20 x 11 mm. |
• Weight: 30 gr. |
• Meets ROHS, FCC, and CE EMI requirements |
• Made in China |

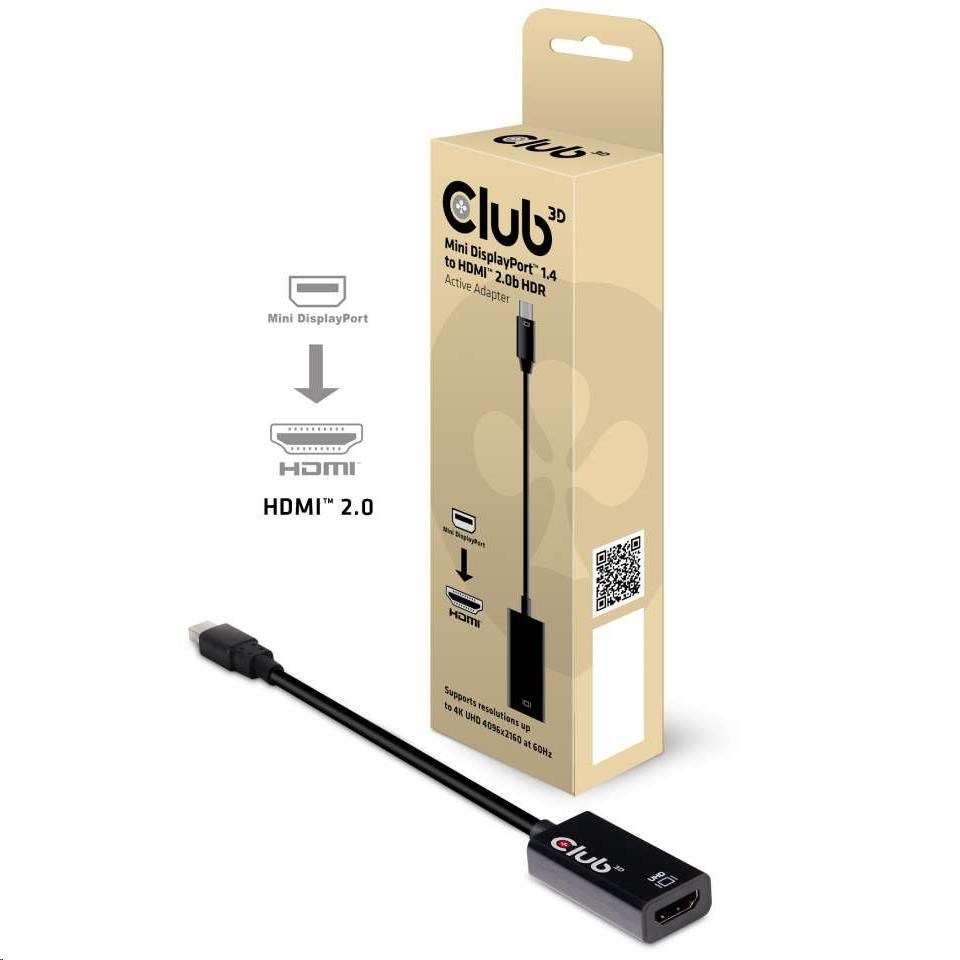

In the box: |
Club 3D Mini DisplayPort™ 1.4 to HDMI™ 2.0b HDR Active Adapter |
In case of technical questions, you can contact the official support of the Club 3D manufacturer by email: support@club-3d.com. Support works mainly in English, but you can also write a question in Czech and the manufacturer will handle it. The manufacturer will respond within 24 hours. It is also possible to visit the discussion at the link: https://insights.club-3d.com/. Where you can also find useful information on using Club 3D products.
Specyfikacje techniczne
- Specyfikacja kabla / przejsciówki: Adapter
