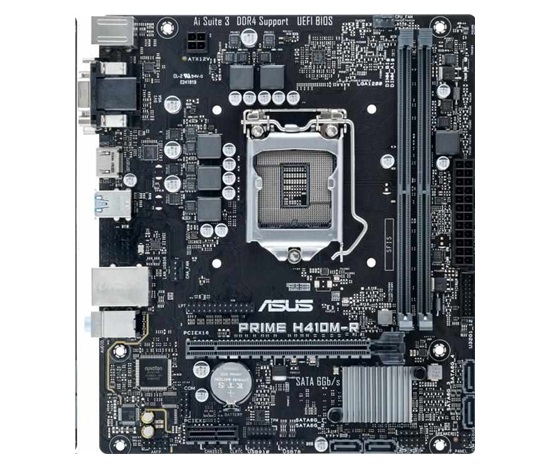

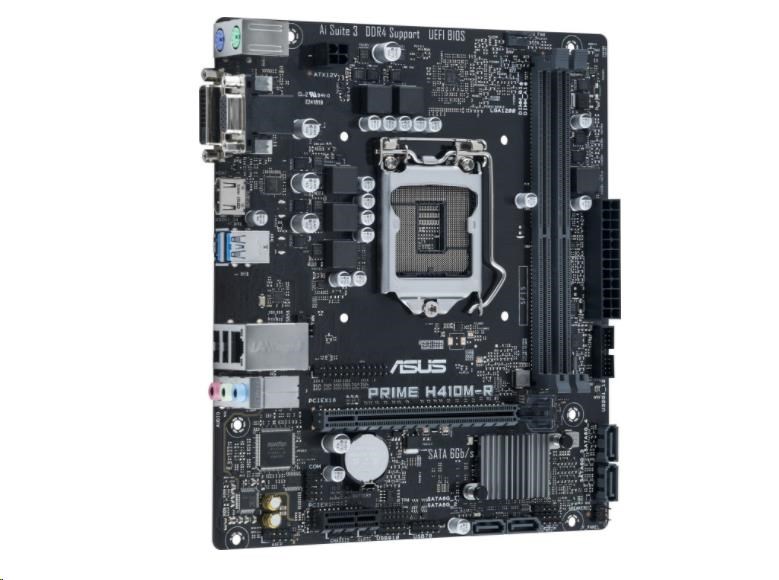

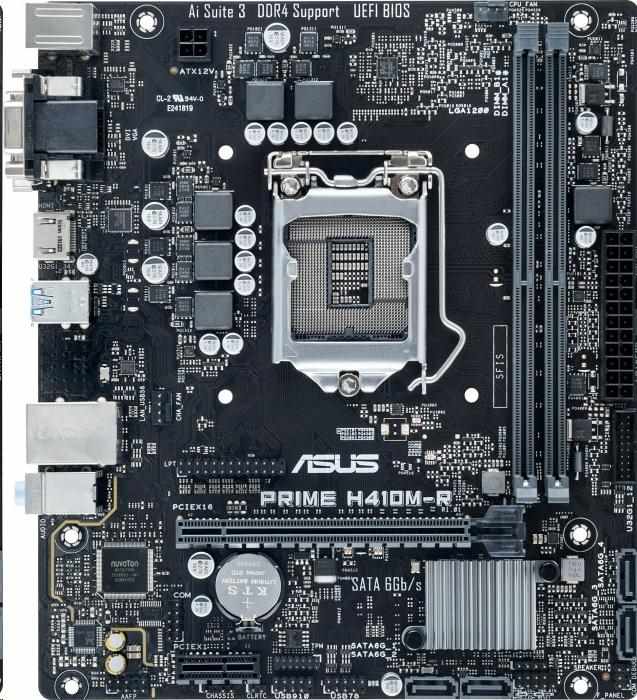

BAZAR - ASUS MB Sc LGA1200 PRIME H410M-R-SI, Intel H410, 1xHDMI, 1xDVI, 1xVGA, mATX - Po opravě (Bez příslušenství)
Format:micro ATX; Chipset:Intel; Socket:Socket 1200; Motherboard memory module type:DDR4; RAID support:No; PCI express 16x:1; COM port; LPT port; Integrated graphics card:Yes (CPU); Integrated LAN card:1
Twoja cena:
Pokaż cenę
Dostępność:
W magazynie 1 szt
Szczegóły
PRIME H410M-R
TECHNICAL SPECIFICATIONS
CPU | Intel Socket LGA1200 for 10th Gen Intel CoreTM, Pentium Gold and Celeron Processors Supports up to Intel 65W Cpu Supports Intel 14nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 *Refer to www.asus.com for CPU support list. **Intel Terbo Boost Max Technology 3.0 support depends on the CPU types. |
Chipset | Intel H410 Chipset |
Memory | 2 x DIMM, Max. 64GB, DRR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem |
Graphics | 1 x HDMI 1.4b 1 x D-Sub 1 x DVI-D *Graphics specifications may very between CPU types. |
Expansion Slots | Intel 10th Gen Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) Intel H410 Chipset 1 x PCIe 3.0 x1 slot |
Storage | Total supports 4 x SATA 6Gb/s ports Intel H410 Chipset 4 x SATA 6Gb/s ports |
Ethernet | 1 x Realtek RTL8111H 1Gb Ethernet |
USB | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) |
Front USB (Total 6 ports) 1 x USB Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
Audio | Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC - Jack-detection, Multi-streaming, Front Panel Jack-retasking - Support up to 24-Bit/192kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers |

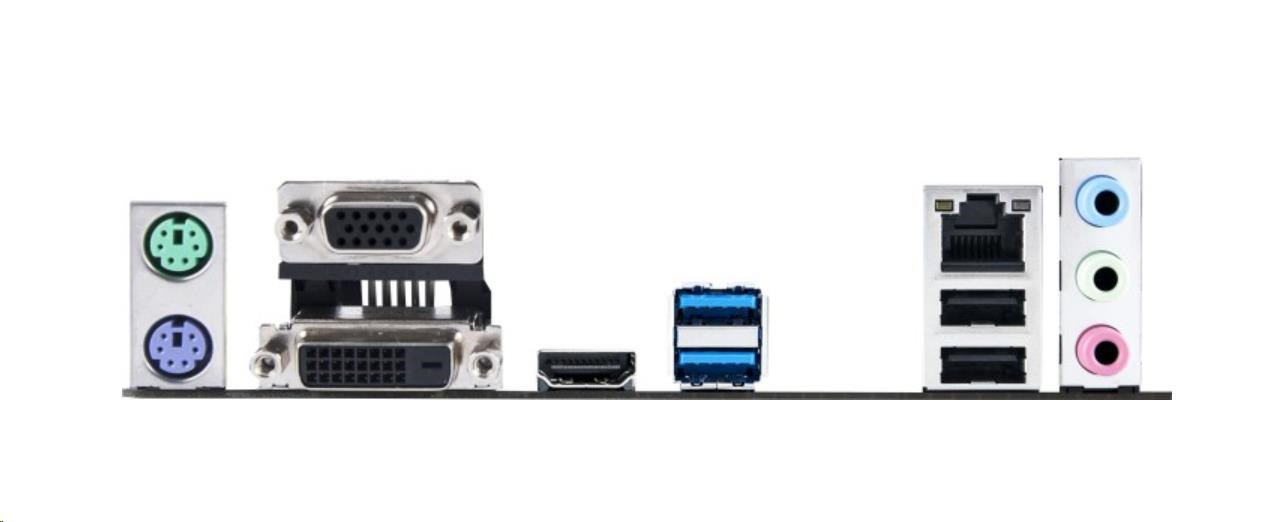

Back Panel I/O Ports | 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x D-Sub port 1 x DVI-D port 1 x Realtek RTL8111H 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 keyboard (purple) port 1 x PS/2 mouse (green) port |
Internal I/O Connectors | Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x Speaker header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header |
Special Features | ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design |
Software Features | ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance and Power Saving Utility TurboV EVO EPU DIGI+ VRM PC Cleaner -ER update AI Changer Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |
Operating System | Windows 10 - 64 bit |
Form Factor | mATX Form Factor 8.4 x 7.2 inch (21.3 x 18.3 cm) |
Specyfikacje techniczne
- Pro procesory: Intel
- Počet paměťových slotů: 2
- Socket: Socket 1200
- Format: micro ATX
- Chipset: Intel
- Rodzaj pamięci: DDR4
- PCI express 16x: 1
- PCI Express x1: 1
- USB 2: 6
- USB 3: 4
- USB C: 0
- SATA 3: 4
- PCI: 0
- Wsparcie RAID: Bez RAID podpory
- M.2 slot: 0
- COM port: Tak
- 3.5mm Jack: Ano
- LAN: 1Gbit/s
- LPT port: Tak
- VGA: 1
- DVI: 1
- HDMI: 1
- DisplayPort: 0
- Bezdrátové připojení: bez
- Led Header: Ne
- TPM: Ne
